VarAC Installation and Configuration With VARA HF

In this article, we'll take a quick look at some elements that weren't covered in my VarAC installation video. We're going to cover a few topics such as the receive audio and transmit audio, as well as tips for getting the most out of your Icom 7300. So let's dive in!

VarAC Installation VARA HF

VaAC Quick Start Guide

Here's a link to an excellent post. Browse over. My video covers the configuration part of it.

Firstly, let's talk about the audio components.

You'll need to setup the receive audio to the best level. We do this in the operating system sound properties. For Windows go to sound properties.

In Windows 11, click on your speaker icon in the tasjbar and select sound properties. You want to being that up and lok for the microphone, USB Audio CODEC. Increase on decrease the level to get a 12 o'clock audio level in VARA HF receive dial.

Next, let's talk about the Transmit level.

I start out with 25 watts. I know guys are running more or less, but 25 sounds good to me. As I mentioned in the video I have an Elecraft KX2 and I'll try QRP power with it.

I went over adjust power and ALC a tiny bit in the video below, but also in more detail in a previous post. See Icom 7300 Easy Transmitter Settings For Digital Operation.

PRESET For the Icom 7300

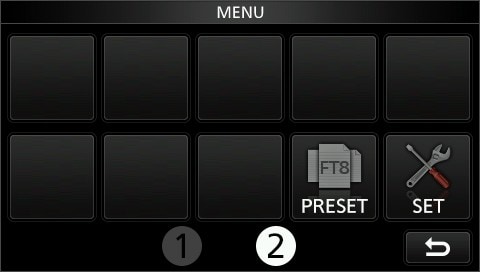

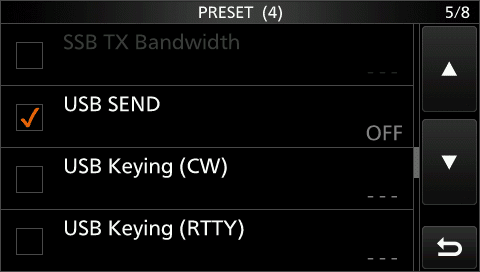

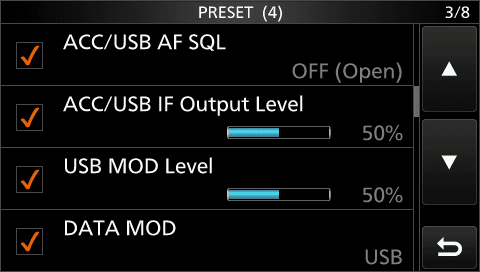

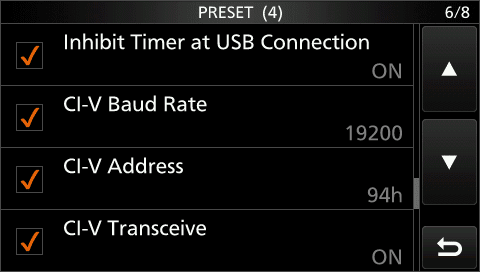

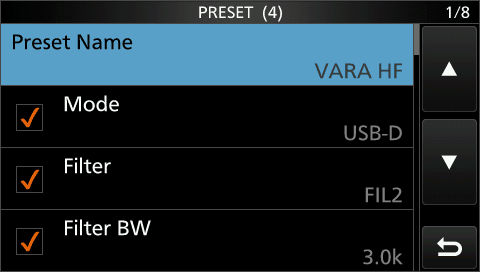

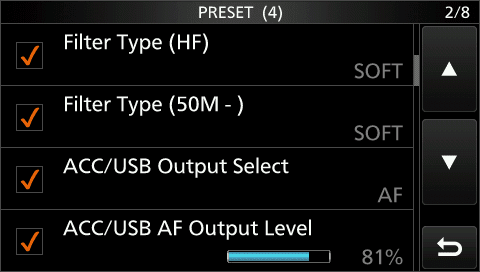

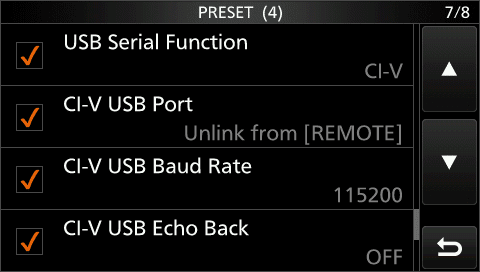

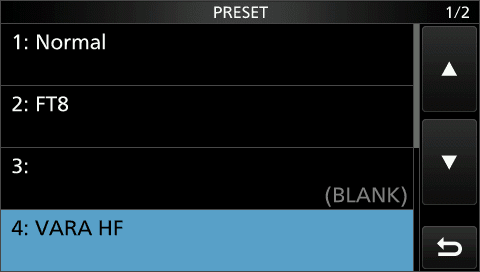

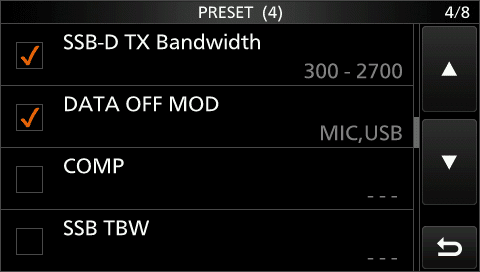

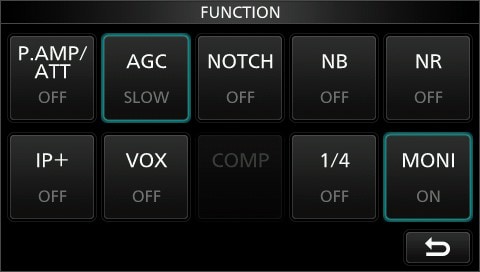

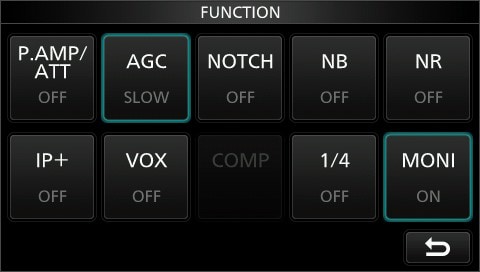

I have a nice PRESET for my Icom 7300 which you can use. Here are the screen captures from my IC-7300. The last screen is the <<WRITE>> funtion. So after making your changes, write it to the PRESET.

VarAC Installation, VARA HF Installation and Configuration Video

YouTube player

Thank You

Are you using it? Meet me on 20 or 40 Meters.

To stay up to date with Mr. B and I on our travels, follow us at TwitterFacebookInstagram and YouTube. If you have any questions or comments about our journey, we invite you to join the conversation in our comment section here or at YouTube–it not only helps you but other readers as well! We’re incredibly thankful for all of our subscribers–their support makes this website possible. So please stay in touch and warmest regards & best 73s! – Rich, K0PIR

Sources:

VarAC Home

VarAC Download

Prerequisite -VARA-HF 4.7.2

VarAC Quick Start Guide

My Icom 7300 Screen Captures
