Quartzsite Quartzfest: Unveiling the Magic of the Icom 7300
Quartzsite Arizona Operating Conditions with the Icom 7300

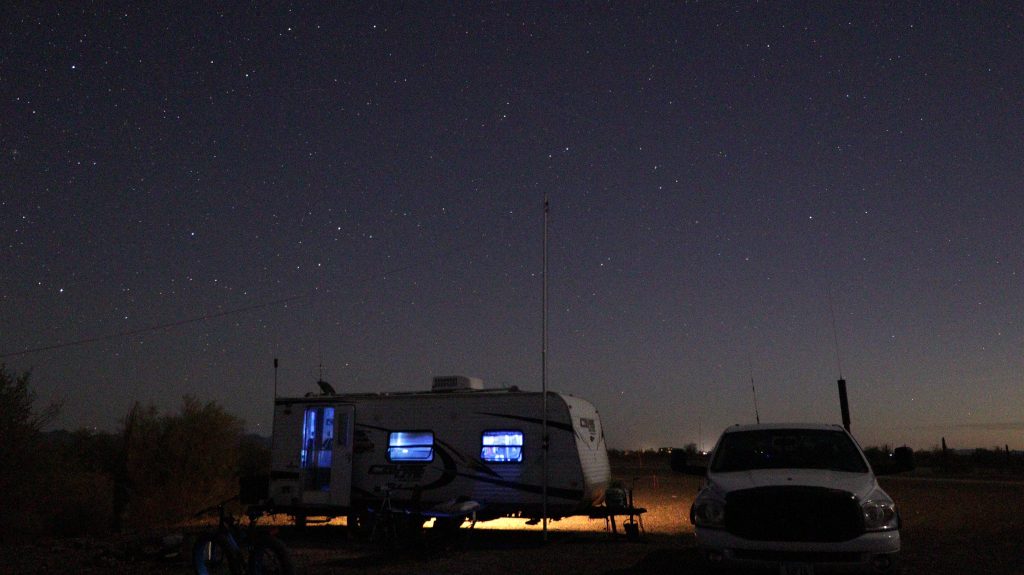

Quartzsite, Arizona, is a unique location for ham radio operators. Specifically, I am 7 miles to the south of the town of Quartzsite in the open desert. The desert environment, coupled with many RVs presents a set of operating conditions that are both challenging and rewarding.
One of the most popular radios used in this area is the Icom 7300, a high-performance HF transceiver with a compact design and advanced features. When paired with an inverted V antenna, the Icom 7300 can deliver exceptional performance under the Quartzsite operating conditions. It is much better than the Hi-Q antenna mounted on the rear of the camper, but not as easy to deploy. The Hi-Q is exceptional for mobile operation though.

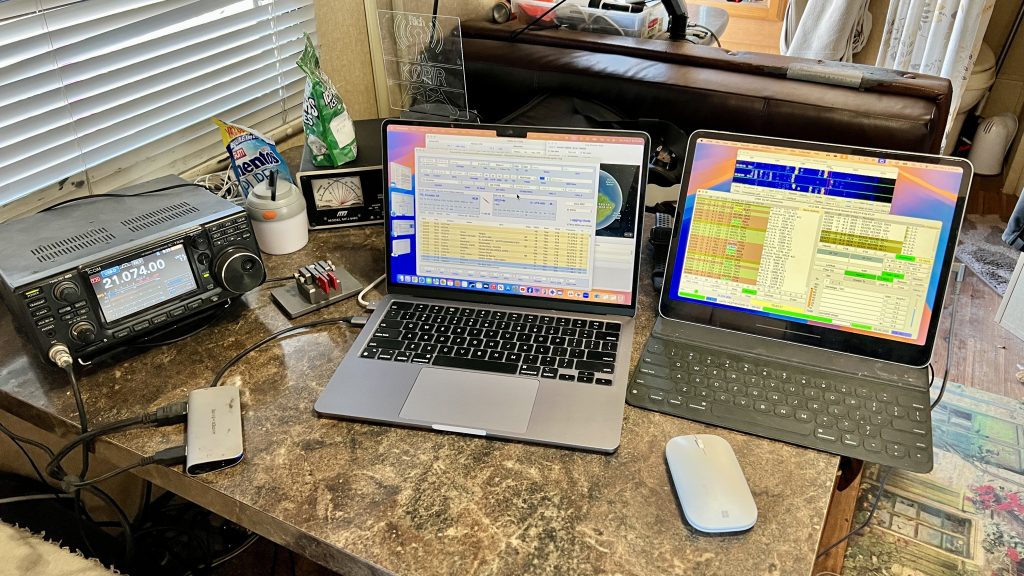

Using the above station along with my Ameritron AL-500M mobile amplifier I can run the Breakfast Club net wholly from this location while not using any online SDR's. One year I used my remote IC-7610 to run the net and that worked very well. I just need a good cellular signal to operate the remote station.
The Icom 7300's performance is further enhanced when used with a good antenna. This year I am using a wire antenna with 9:1 UNUN as an inverted V antenna. This type of antenna, which is shaped like an upside-down 'V', is known for its efficiency and wide bandwidth. It is particularly effective in the flat desert, open terrain. The lack of obstructions allows the antenna to transmit and receive signals with minimal interference. The only interference I get is from the RVs power systems. Whether it's mine or some else closeby. Solar chargers, inverters and converters present a challenge.
Despite these challenges (RV noise), operating in Quartzsite can be a rewarding experience. This remote location and clear skies make it an ideal spot for stargazing.
Maximizing Inverted V Performance at Quartzfest
Quartzsite, Arizona, is a popular destination for amateur radio enthusiasts, particularly during the annual Quartzfest event. One of the most popular radio models used in this setting is the Icom 7300, a high-performance, innovative HF transceiver with a compact design. When paired with an Inverted V antenna, the Icom 7300 can deliver exceptional performance, even in the challenging operating conditions of Quartzsite.
The Inverted V is a type of antenna that is particularly well-suited to the conditions in Quartzsite. This antenna gets its name from its distinctive shape, which resembles an inverted letter "V". It is a simple, yet effective design that is easy to set up and offers excellent performance, particularly for HF (High Frequency) operations.
Things to consider when deploying the antenna:
To maximize the performance of the Inverted V at Quartzfest with the Icom 7300, there are several key factors to consider. First, the height of the antenna is crucial. The Inverted V should be installed as high as possible, ideally at least half a wavelength above the ground. This will ensure the best possible signal propagation and minimize ground losses. My flagpole puts it at 20' at the highest point, so I am a little lower than I would like to be. While I'm at the Yuma Hamfest I'll look for another flag pole solution. 30' should do.
Second, the angle of the "V" is also important. The optimal angle is typically around 120 degrees, although this can vary depending on the specific operating conditions. I'm limited by the height of my flag pole.
Third, the orientation of the antenna can also impact performance. The Inverted V should be oriented in the direction of the desired signal path. This can help to maximize signal strength in the desired direction and minimize interference from other directions. I have mine running north and south. Again I'm limited by the surrounding RVs and desert fauna.
The radio's built-in automatic tuner can help to optimize the antenna's performance, automatically adjusting the impedance to match the operating frequency. This works well on antennas with an SWR of 3:1 or less. I have an MFJ Deluxe Versa Tuner II and using it with this antenna I can operate on all bands, 10-80 Meters.
In addition, the Icom 7300's advanced DSP (Digital Signal Processing) capabilities can help to improve signal clarity and reduce noise. This can be particularly beneficial in the challenging operating conditions of Quartzsite, where atmospheric and environmental noise can be a significant issue. When operating on SSB I use the RF gain to reduce noise and I enable the NR and set it to 3 or 4. Don't forget to use Passband Tuning. It can help reduce noise on a particular signal.
In conclusion: The IC-7300, Ameritron Al-500M, MFJ Deluxe Versa Tuner II and inverted vee make an unbeatable combination in the desert.
Thank you
A big thanks to subscribers and everyone who posts questions, comments and sends emails with ideas and suggestions. I sincerely appreciate it and hope this website helps Ham operators.
If you have a question or suggestion, please comment below. I will do my best to answer it and your experience will help others as well.
73,
Rich, K0PIR
